Installing OpenOCD on Windows
Warning: You must install OpenOCD first before connecting your USB JTAG adapter to the PC.
The OpenOCD Installation for Windows is available on this CD
»openocd-r520-20080322.exe
For the latest Version visit egnite's product page.

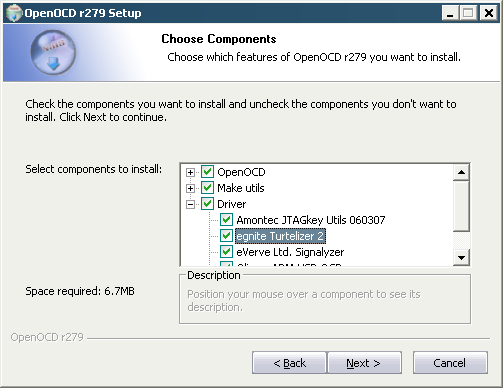

The installation is easily done by starting the executable and following the given instructions.
If your JTAG adapter is based on the FT2232 chip, then the FTDI driver must be installed in the next step. For other adapters, please consult the documentation that is available from the manufacturer of your specific adapter.

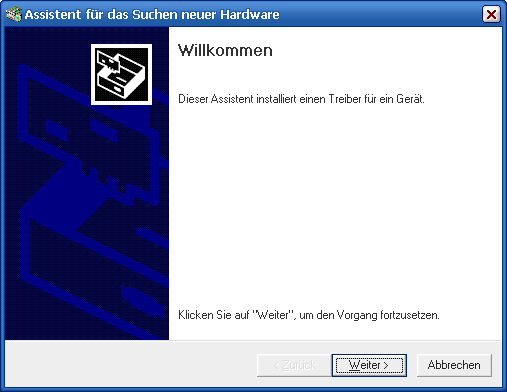

Connect one end of the USB cable to the PC USB port and the other to the USB connector on the JTAG adapter. Windows will automatically detect the new hardware. Concurrently the first screen of the Found New Hardware Wizard appears. Follow the instruction. Make sure that the option Specify a location is selected and deselect all others. Officially supported drivers are located in the subdirectory driver within the OpenOCD installation directory.
The following screenshots exemplify the Turtelizer 2 installation. Note, that this adapter provides a JTAG and an RS-232 port. Thus, two drivers will be installed.
