Ethernut 5.0 Rev-F

The basis is a 6-layer PCB, where mostly SMT components are mounted on both sides. Completely mounted and tested boards are available from egnite GmbH.

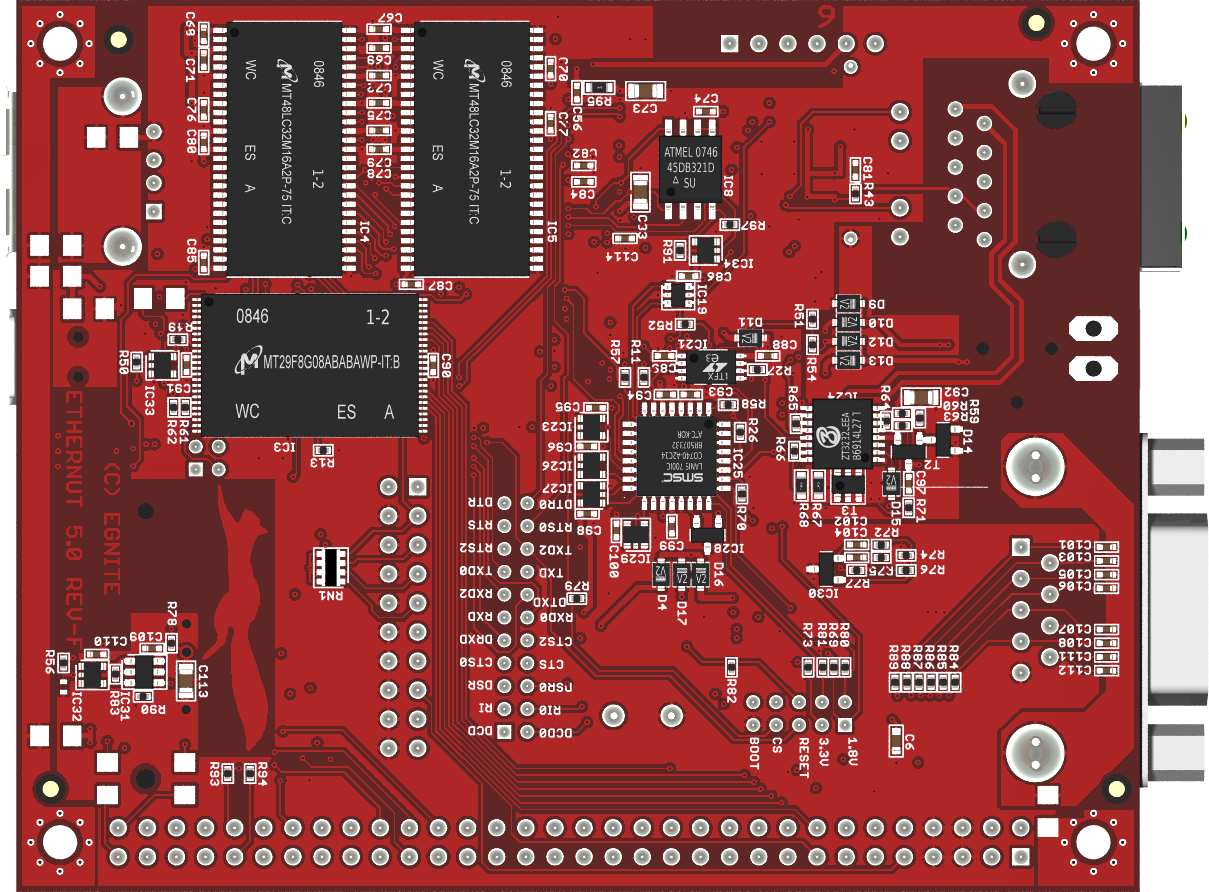

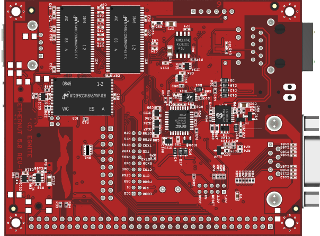

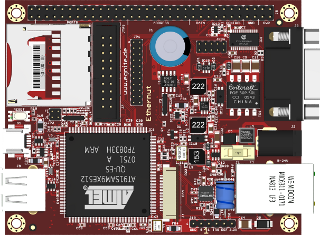

Ethernut 5.0 Rev-F Top View Ethernut 5.0 Rev-F Bottom View

Documents

Hardware References

Ethernut 5.0 Rev-F Hardware Manual
including all schematics.

Expansion port
Lists the signals available on the Ethernut 5 Expansion Port and compares these with previous Ethernut versions.

enut50f.zip
Eagle 4.11 schematic and board file.
