at91_matrix.h File Reference

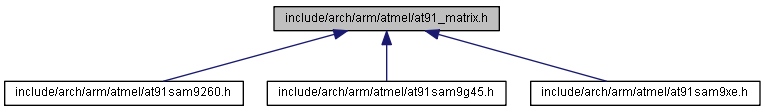

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	MATRIX_MASTER_I   0
#define	MATRIX_MASTER_D   1
#define	MATRIX_MASTER_PDC   2
#define	MATRIX_MASTER_ISI   3
#define	MATRIX_MASTER_EMAC   4
#define	MATRIX_MASTER_USB   5
#define	MATRIX_SLAVE_SRAM0   0
#define	MATRIX_SLAVE_SRAM1   1
#define	MATRIX_SLAVE_ROM_USB   2
#define	MATRIX_SLAVE_EBI   3
#define	MATRIX_SLAVE_PERIPHERALS   4
Master Configuration Registers
#define	MATRIX_MCFG_OFF   0x00000000
	Master configuration register offset.
#define	MATRIX_MCFG(i)   (MATRIX_BASE + MATRIX_MCFG_OFF + (i) * 4)
	Master configuration register addresses.
Slave Configuration Registers
#define	MATRIX_SCFG_OFF   0x00000040
	Slave configuration register offset.
#define	MATRIX_SCFG(i)   (MATRIX_BASE + MATRIX_SCFG_OFF + (i) * 4)
	Slave configuration register addresses.
Slave Priority Registers
#define	MATRIX_PRAS_OFF   0x00000080
	Slave priority register A offset.
#define	MATRIX_PRAS(i)   (MATRIX_BASE + MATRIX_PRAS_OFF + (i) * 8)
	Slave priority register A addresses.
Master Remap Control Register
#define	MATRIX_MRCR_OFF   0x00000100
	Remap control register offset.
#define	MATRIX_MRCR   (MATRIX_BASE + MATRIX_MRCR_OFF)
	Remap control register address.
#define	MATRIX_MRCR_RCB0   0x00000001
	Enable remap for master 0.
#define	MATRIX_MRCR_RCB1   0x00000002
	Enable remap for master 1.
