_AHDLCDCB Struct Reference

Asynchronous HDLC device information structure. More...

#include <dev/ahdlc.h>

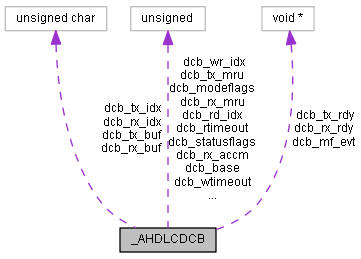

Collaboration diagram for _AHDLCDCB:

Data Fields
uint32_t	dcb_modeflags
	Mode flags.
uint32_t	dcb_statusflags
	Status flags.
uint32_t	dcb_rtimeout
	Read timeout.
uint32_t	dcb_wtimeout
	Write timeout.
HANDLE	dcb_tx_rdy
	Queue of threads waiting for output buffer empty.
HANDLE	dcb_rx_rdy
	Queue of threads waiting for a character in the input buffer.
uint8_t	dcb_base
	Hardware base address.
volatile uint8_t *	dcb_rx_buf
	Input buffer.
volatile uint8_t	dcb_rx_idx
	Input buffer index for next incoming byte.
uint8_t	dcb_rd_idx
	Input buffer index for next byte to read.
uint8_t *	dcb_tx_buf
	Output buffer.
volatile uint8_t	dcb_tx_idx
	Output buffer index for next outgoing byte.
uint8_t	dcb_wr_idx
	Output buffer index for next byte to write.
HANDLE	dcb_mf_evt
	HDLC mode change event queue.
uint32_t	dcb_rx_accm
	32-bit receive ACCM.
uint32_t	dcb_tx_accm
	256-bit transmit ACCM.
uint16_t	dcb_rx_mru
	Maximum receive MRU.
uint16_t	dcb_tx_mru
	Maximum transmit MRU.

---

Detailed Description

Asynchronous HDLC device information structure.

The start of this structure is equal to the UARTDCB structure.

Definition at line 82 of file ahdlc.h.

---

Field Documentation

uint32_t _AHDLCDCB::dcb_modeflags

Mode flags.

Definition at line 86 of file ahdlc.h.

Referenced by AhdlcAt91IOCtl(), AhdlcAvrIOCtl(), AhdlcOutput(), and AhdlcRx().

uint32_t _AHDLCDCB::dcb_statusflags

Status flags.

Definition at line 90 of file ahdlc.h.

uint32_t _AHDLCDCB::dcb_rtimeout

Read timeout.

Definition at line 94 of file ahdlc.h.

Referenced by AhdlcAt91IOCtl(), AhdlcAt91Read(), AhdlcAvrIOCtl(), AhdlcAvrRead(), and AhdlcRx().

uint32_t _AHDLCDCB::dcb_wtimeout

Write timeout.

Definition at line 98 of file ahdlc.h.

Referenced by AhdlcAt91IOCtl(), and AhdlcAvrIOCtl().

HANDLE _AHDLCDCB::dcb_tx_rdy

Queue of threads waiting for output buffer empty.

Threads are added to this queue when the output buffer is full or when flushing the output buffer.

Definition at line 105 of file ahdlc.h.

HANDLE _AHDLCDCB::dcb_rx_rdy

Queue of threads waiting for a character in the input buffer.

Threads are added to this queue when the output buffer is empty.

Definition at line 112 of file ahdlc.h.

Referenced by AhdlcAt91IOCtl(), AhdlcAt91Read(), AhdlcAvrIOCtl(), AhdlcAvrRead(), and AhdlcRx().

uint8_t _AHDLCDCB::dcb_base

Hardware base address.

This is a copy of the base address in the NUTDEVICE structure and required by the interrupt routine.

Definition at line 119 of file ahdlc.h.

Referenced by AhdlcAt91Init(), AhdlcAt91IOCtl(), and AhdlcAvrInit().

volatile uint8_t* _AHDLCDCB::dcb_rx_buf

Input buffer.

This buffer is filled by the the receiver interrupt, so the contents of the buffer is volatile.

Definition at line 126 of file ahdlc.h.

Referenced by AhdlcAt91Init(), AhdlcAt91Read(), AhdlcAvrInit(), AhdlcAvrRead(), and AhdlcRx().

volatile uint8_t _AHDLCDCB::dcb_rx_idx

Input buffer index for next incoming byte.

This volatile index is incremented by the receiver interrupt.

Definition at line 132 of file ahdlc.h.

Referenced by AhdlcAt91Read(), AhdlcAvrRead(), and AhdlcRx().

uint8_t _AHDLCDCB::dcb_rd_idx

Input buffer index for next byte to read.

Definition at line 136 of file ahdlc.h.

Referenced by AhdlcAt91Read(), AhdlcAvrRead(), and AhdlcRx().

uint8_t* _AHDLCDCB::dcb_tx_buf

Output buffer.

Definition at line 140 of file ahdlc.h.

Referenced by AhdlcAt91Init(), and AhdlcAvrInit().

volatile uint8_t _AHDLCDCB::dcb_tx_idx

Output buffer index for next outgoing byte.

This volatile index is incremented by the transmit interrupt.

Definition at line 146 of file ahdlc.h.

uint8_t _AHDLCDCB::dcb_wr_idx

Output buffer index for next byte to write.

Definition at line 150 of file ahdlc.h.

HANDLE _AHDLCDCB::dcb_mf_evt

HDLC mode change event queue.

The frame receiver thread is waiting on this queue until the device is switched to HDLC mode.

Definition at line 157 of file ahdlc.h.

Referenced by AhdlcAt91IOCtl(), AhdlcAvrIOCtl(), and AhdlcRx().

uint32_t _AHDLCDCB::dcb_rx_accm

32-bit receive ACCM.

Definition at line 161 of file ahdlc.h.

uint32_t _AHDLCDCB::dcb_tx_accm

256-bit transmit ACCM.

Definition at line 165 of file ahdlc.h.

Referenced by AhdlcAt91Init(), AhdlcAvrInit(), and AhdlcAvrIOCtl().

uint16_t _AHDLCDCB::dcb_rx_mru

Maximum receive MRU.

Definition at line 169 of file ahdlc.h.

Referenced by AhdlcAt91Init(), AhdlcAvrInit(), AhdlcAvrIOCtl(), and AhdlcRx().

uint16_t _AHDLCDCB::dcb_tx_mru

Maximum transmit MRU.

Definition at line 173 of file ahdlc.h.

Referenced by AhdlcAt91Init(), AhdlcAvrInit(), AhdlcAvrIOCtl(), and AhdlcOutput().

---

The documentation for this struct was generated from the following file:

• include/dev/ahdlc.h
