Trace functions. More...

#include <sys/types.h>
#include <stdint.h>
#include <sys/atom.h>

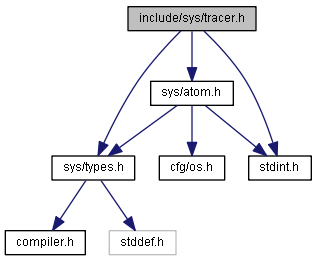

Include dependency graph for tracer.h:

Data Structures
struct	_t_traceitem
	Item in the trace buffer. More...
Defines
#define	TRACE_MODE_FIRST 0
#define	TRACE_MODE_OFF 0
#define	TRACE_MODE_CIRCULAR 1
#define	TRACE_MODE_ONESHOT 2
#define	TRACE_MODE_LAST 2
#define	TRACE_MODE_DEFAULT TRACE_MODE_CIRCULAR
#define	TRACE_SIZE_DEFAULT 500
#define	TRACE_TAG_FIRST 0
#define	TRACE_TAG_CRITICAL_FIRST 0
#define	TRACE_TAG_CRITICAL_ENTER 0
#define	TRACE_TAG_CRITICAL_EXIT 1
#define	TRACE_TAG_CRITICAL_LAST 1
#define	TRACE_TAG_THREAD_FIRST 2
#define	TRACE_TAG_THREAD_YIELD 2
#define	TRACE_TAG_THREAD_SETPRIO 3
#define	TRACE_TAG_THREAD_WAIT 4
#define	TRACE_TAG_THREAD_SLEEP 5
#define	TRACE_TAG_THREAD_LAST 5
#define	TRACE_TAG_INTERRUPT_FIRST 6
#define	TRACE_TAG_INTERRUPT_ENTER 6
#define	TRACE_TAG_INTERRUPT_EXIT 7
#define	TRACE_TAG_INTERRUPT_LAST 7
#define	TRACE_TAG_START 8
#define	TRACE_TAG_STOP 9
#define	TRACE_TAG_USER 10
#define	TRACE_TAG_LAST 10
#define	TRACE_MAX_USER 10
#define	TRACE_INT_FIRST 0
#define	TRACE_INT_UART0_CTS 0
#define	TRACE_INT_UART0_RXCOMPL 1
#define	TRACE_INT_UART0_TXEMPTY 2
#define	TRACE_INT_UART1_CTS 3
#define	TRACE_INT_UART1_RXCOMPL 4
#define	TRACE_INT_UART1_TXEMPTY 5
#define	TRACE_INT_TIMER0_OVERFL 6
#define	TRACE_INT_TIMER1_OVERFL 7
#define	TRACE_INT_SUART_TIMER 8
#define	TRACE_INT_SUART_RX 9
#define	TRACE_INT_LAST 9
#define	TRACE_ADD_ITEM(TAG, PC)
#define	TRACE_ADD_ITEM_PC(TAG) TRACE_ADD_ITEM(TAG,NutTraceGetPC())
Typedefs
typedef struct _t_traceitem	t_traceitem
	Item in the trace buffer.
Functions
int	NutTraceInit (int size, char mode)
void	NutTraceStop (void)
void	NutTracePrint (int size)
void	NutTraceTerminal (char *arg)
int	NutTraceGetPC (void)
void	NutTraceClear (void)
void	NutTraceMaskPrint (void)
void	NutTraceMaskClear (int tag)
void	NutTraceMaskSet (int tag)
void	NutTraceStatusPrint (void)
int	NutTraceRegisterUserTag (int tag, char *tag_string)
Variables
unsigned int	micros_high
	Upper 16 bits of microseconds clock, incremented on timer 1 overflow interrupts.
t_traceitem *	trace_items
	Trace buffer, initialized by NutTraceInit.
t_traceitem *	trace_current
	Pointer to the current item in the trace buffer.
int	trace_head
	Current index in the trace buffer.
int	trace_size
	Size of the trace buffer.
char	trace_isfull
	Flag indicating whether all items in the trace buffer contain valid information.
char	trace_mode
	Current state of the tracing facility.
char	trace_mask [TRACE_TAG_LAST+1]
	Mask to individually disable tracing of specific event types.

Detailed Description

Trace functions.

Author:: Philipp Blum <blum@tik.ee.ethz.ch>

Date:: 22.12.2004

Definition in file tracer.h.

Define Documentation

#define TRACE_MODE_FIRST 0

Definition at line 61 of file tracer.h.

#define TRACE_MODE_OFF 0

Definition at line 62 of file tracer.h.

#define TRACE_MODE_CIRCULAR 1

Definition at line 63 of file tracer.h.

#define TRACE_MODE_ONESHOT 2

Definition at line 64 of file tracer.h.

#define TRACE_MODE_LAST 2

Definition at line 65 of file tracer.h.

#define TRACE_MODE_DEFAULT TRACE_MODE_CIRCULAR

Definition at line 66 of file tracer.h.

#define TRACE_SIZE_DEFAULT 500

Definition at line 68 of file tracer.h.

#define TRACE_TAG_FIRST 0

Definition at line 71 of file tracer.h.

#define TRACE_TAG_CRITICAL_FIRST 0

Definition at line 72 of file tracer.h.

#define TRACE_TAG_CRITICAL_ENTER 0

Definition at line 73 of file tracer.h.

#define TRACE_TAG_CRITICAL_EXIT 1

Definition at line 74 of file tracer.h.

#define TRACE_TAG_CRITICAL_LAST 1

Definition at line 75 of file tracer.h.

#define TRACE_TAG_THREAD_FIRST 2

Definition at line 76 of file tracer.h.

#define TRACE_TAG_THREAD_YIELD 2

Definition at line 77 of file tracer.h.

Referenced by NutThreadResume().

#define TRACE_TAG_THREAD_SETPRIO 3

Definition at line 78 of file tracer.h.

Referenced by NutThreadSetPriority().

#define TRACE_TAG_THREAD_WAIT 4

Definition at line 79 of file tracer.h.

Referenced by NutEventWait().

#define TRACE_TAG_THREAD_SLEEP 5

Definition at line 80 of file tracer.h.

Referenced by NutSleep().

#define TRACE_TAG_THREAD_LAST 5

Definition at line 81 of file tracer.h.

#define TRACE_TAG_INTERRUPT_FIRST 6

Definition at line 82 of file tracer.h.

#define TRACE_TAG_INTERRUPT_ENTER 6

Definition at line 83 of file tracer.h.

#define TRACE_TAG_INTERRUPT_EXIT 7

Definition at line 84 of file tracer.h.

#define TRACE_TAG_INTERRUPT_LAST 7

Definition at line 85 of file tracer.h.

#define TRACE_TAG_START 8

Definition at line 86 of file tracer.h.

#define TRACE_TAG_STOP 9

Definition at line 87 of file tracer.h.

#define TRACE_TAG_USER 10

Definition at line 88 of file tracer.h.

#define TRACE_TAG_LAST 10

Definition at line 89 of file tracer.h.

#define TRACE_MAX_USER 10

Definition at line 91 of file tracer.h.

#define TRACE_INT_FIRST 0

Definition at line 93 of file tracer.h.

#define TRACE_INT_UART0_CTS 0

Definition at line 94 of file tracer.h.

#define TRACE_INT_UART0_RXCOMPL 1

Definition at line 95 of file tracer.h.

#define TRACE_INT_UART0_TXEMPTY 2

Definition at line 96 of file tracer.h.

#define TRACE_INT_UART1_CTS 3

Definition at line 97 of file tracer.h.

#define TRACE_INT_UART1_RXCOMPL 4

Definition at line 98 of file tracer.h.

#define TRACE_INT_UART1_TXEMPTY 5

Definition at line 99 of file tracer.h.

#define TRACE_INT_TIMER0_OVERFL 6

Definition at line 100 of file tracer.h.

#define TRACE_INT_TIMER1_OVERFL 7

Definition at line 101 of file tracer.h.

#define TRACE_INT_SUART_TIMER 8

Definition at line 102 of file tracer.h.

#define TRACE_INT_SUART_RX 9

Definition at line 103 of file tracer.h.

#define TRACE_INT_LAST 9

Definition at line 104 of file tracer.h.

#define TRACE_ADD_ITEM	(	TAG,
		PC
	)

Value:

if ((trace_mode != TRACE_MODE_OFF) &&           \
        (trace_mask[TAG] == 1))                     \
    {                                               \
        asm volatile(                               \
            "in  __tmp_reg__, __SREG__" "\n\t"      \
            "push __tmp_reg__"  "\n\t"              \
            "cli"                       "\n\t"      \
        );                                          \
        trace_current = &trace_items[trace_head++]; \
        trace_current->tag = TAG;                   \
        trace_current->pc = PC;                     \
        trace_current->time_h = micros_high;        \
        trace_current->time_l = TCNT1;              \
        if (trace_head >= trace_size) {             \
            trace_isfull = 1;                       \
            trace_head = 0;                             \
            if (trace_mode == TRACE_MODE_ONESHOT)   \
                trace_mode = TRACE_MODE_OFF;        \
        }                                           \
        asm volatile(                               \
            "pop __tmp_reg__"           "\n\t"      \
            "out __SREG__, __tmp_reg__" "\n\t"      \
        );                                          \
    }

Macro to insert an event in the trace buffer

Parameters:

TAG	Type of event
PC	Additional information, depending on the type of event

Definition at line 274 of file tracer.h.

Referenced by NutEventWait(), NutSleep(), NutThreadResume(), and NutThreadSetPriority().

#define TRACE_ADD_ITEM_PC ( TAG ) TRACE_ADD_ITEM(TAG,NutTraceGetPC())

Macro to insert an event in the trace buffer, filling the additional information field with the program counter (PC)

Parameters:

TAG	Type of event

Definition at line 305 of file tracer.h.

Typedef Documentation

typedef struct _t_traceitem t_traceitem

Item in the trace buffer.

Function Documentation

int NutTraceInit	(	int	size,
		char	mode
	)

Initializes the trace buffer and activates tracing. Starts timer 1 for microsecond clock, enables interrupt on overflow

Parameters:

size	Number of items in the trace buffer
mode	Mode of operation TRACE_MODE_CIRCULAR Trace buffer wraps around when full TRACE_MODE_ONESHOT Traceing is stopped when buffer is full

Returns:: int Status

void NutTraceStop ( void )

Sets trace_mode to TRACE_MODE_OFF and thus stop tracing

void NutTracePrint ( int size )

Prints the current contents of the trace buffer

Parameters:

size	can be used to limit the number of printed items, if size==0, then all items of the buffer are printed

void NutTraceTerminal ( char * arg )

Commands to manipulate the tracing facility

Parameters:

arg	String containing the commands print <size> calls NutPrintTrace oneshot restarts tracing in the oneshot mode circular restarts tracing in the ciruclar mode size <size> restarts tracing in the current mode, using a buffer of length <size> stop stops tracing

int NutTraceGetPC ( void )

Returns the program counter (PC) of the instruction following NutGetPC The .map file of the application can be used to find the actual C Code

WARNING: Most likely only works on AVR. Works by inspecting the stack, thus the function breaks when local variables are introduced in NutGetPC

Returns:: int Program counter

void NutTraceClear ( void )

Clears the trace buffer, but leaves trace_mode unaltered.

void NutTraceMaskPrint ( void )

Prints the current state of trace_mask, which for every type of event (TRACE_TAG_XXX) determines, whether they are inserted in the trace buffer or not.

void NutTraceMaskClear ( int tag )

Disables tracing of a particular event type

Parameters:

tag	of event to disable

void NutTraceMaskSet ( int tag )

Enables tracing of a particular event type

Parameters:

tag	of event to enable

void NutTraceStatusPrint ( void )

Prints current status of tracing facility

int NutTraceRegisterUserTag	(	int	tag,
		char *	tag_string
	)

Registers a user event type

Parameters:

tag	of the new event type (e.g. #define TRACE_USER_SEND 0)
tag_string	name of the event type used when printing the trace buffer

Variable Documentation

unsigned int micros_high

Upper 16 bits of microseconds clock, incremented on timer 1 overflow interrupts.

t_traceitem* trace_items

Trace buffer, initialized by NutTraceInit.

t_traceitem* trace_current

Pointer to the current item in the trace buffer.

int trace_head

Current index in the trace buffer.

int trace_size

Size of the trace buffer.

char trace_isfull

Flag indicating whether all items in the trace buffer contain valid information.

char trace_mode

Current state of the tracing facility.

char trace_mask[TRACE_TAG_LAST+1]

Mask to individually disable tracing of specific event types.
