webradio/receiver.h File Reference

---

Detailed Description

Audio data receiver.

 *
 * $Log$
 *
 *

Definition in file receiver.h.

Go to the source code of this file.

Data Structures
struct	RECEIVERPLUGIN
	Receiver plug-in reference structure. More...
struct	RECEIVERINFO
	Receiver information structure. More...
Receiver Status
#define	RSTAT_IDLE   0x0001
	Receiver is idle.
#define	RSTAT_START   0x0002
	Request to start receiver.
#define	RSTAT_BUFFERING   0x0004
	Receiver is running.
#define	RSTAT_RUNNING   0x0008
	Receiver is running.
#define	RSTAT_STOP   0x0010
	Request to stop receiver.
Functions
RECEIVERINFO *	ReceiverCreate (RECEIVERPLUGIN *plugin)
	Create stream receiver instance with the specified plug-in.
RECEIVERINFO *	ReceiverStart (RECEIVERINFO *ritab[], STATIONINFO *sip)
	Start receiver for the connected stream.
int	ReceiverStop (RECEIVERINFO *rip)
	Stop receiver.
u_int	ReceiverStatus (RECEIVERINFO *rip)
	Retrieve the current receiver status.

---

Define Documentation

#define RSTAT_IDLE   0x0001

Receiver is idle.

Definition at line 55 of file receiver.h.

Referenced by main(), ReceiverStop(), and ShoutCastThread().

#define RSTAT_START   0x0002

Request to start receiver.

Definition at line 57 of file receiver.h.

Referenced by ReceiverStart(), and ShoutCastThread().

#define RSTAT_BUFFERING   0x0004

Receiver is running.

Definition at line 59 of file receiver.h.

Referenced by ReceiverStart(), and ShoutCastThread().

#define RSTAT_RUNNING   0x0008

Receiver is running.

Definition at line 61 of file receiver.h.

Referenced by ReceiverStart(), and ShoutCastThread().

#define RSTAT_STOP   0x0010

Request to stop receiver.

Definition at line 63 of file receiver.h.

Referenced by main(), ReceiverStop(), and ShoutCastThread().

---

Function Documentation

RECEIVERINFO* ReceiverCreate

(

RECEIVERPLUGIN *

plugin

)

Create stream receiver instance with the specified plug-in.

Parameters:

plugin

Pointer to a receiver plug-in.

Returns:

Pointer to the receiver info structure or NULL, if the creation failed.

Definition at line 86 of file receiver.c.

References RECEIVERINFO::ri_rpp, and RECEIVERPLUGIN::rp_create.

RECEIVERINFO* ReceiverStart	(	RECEIVERINFO *	ritab[],
		STATIONINFO *	sip
	)

Start receiver for the connected stream.

Parameters:

	ritab	Table of available receivers.
	sip	Information structure of the connected station .

Returns:

Pointer to the receiver entry that had been started. NULL is returned in case any error.

Definition at line 162 of file receiver.c.

References LOG_WARN, LogMsg(), ReceiverPlugInControl(), ReceiverStop(), RECEIVERINFO::ri_rpp, RECEIVERINFO::ri_sip, RECEIVERPLUGIN::rp_setup, RSTAT_BUFFERING, RSTAT_RUNNING, and RSTAT_START.

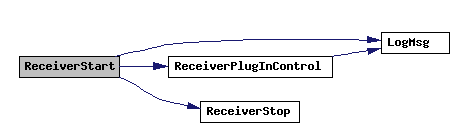

Here is the call graph for this function:

int ReceiverStop

(

RECEIVERINFO *

rip

)

Stop receiver.

Parameters:

rip

Receiver to stop.

Returns:

0 on success, -1 otherwise.

Definition at line 148 of file receiver.c.

References ReceiverPlugInControl(), RSTAT_IDLE, and RSTAT_STOP.

Here is the call graph for this function:

u_int ReceiverStatus

(

RECEIVERINFO *

rip

)

Retrieve the current receiver status.

Parameters:

rip

Pointer to the receiver information structure.

Returns:

Receiver status.

Definition at line 136 of file receiver.c.

References RECEIVERINFO::ri_status.

---
