pcf8563.h File Reference

#include <dev/rtc.h>

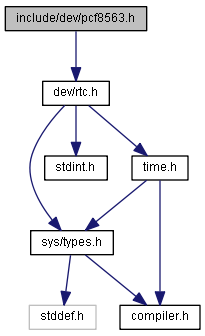

Include dependency graph for pcf8563.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
int	PcfRtcInit (void)
	Initialize the interface to an Intersil PCF8563 hardware clock.
int	PcfRtcGetClock (struct _tm *tm)
	Get date and time from an PCF8563 hardware clock.
int	PcfRtcSetClock (CONST struct _tm *tm)
	Set an PCF8563 hardware clock.
int	PcfRtcGetAlarm (int idx, struct _tm *tm, int *aflgs)
	Get alarm date and time of an PCF8563 hardware clock.
int	PcfRtcSetAlarm (int idx, CONST struct _tm *tm, int aflgs)
	Set alarm of an PCF8563 hardware clock.
int	PcfRtcGetStatus (uint32_t *sflgs)
	Query RTC status flags.
int	PcfRtcClearStatus (uint32_t sflgs)
	Clear RTC status flags.
int	PcfRtcReadRegs (uint8_t addr, uint8_t *buff, size_t len)
	Read RTC registers.
int	PcfRtcWrite (int nv, CONST uint8_t *buff, size_t len)
	Write to RTC registers.
Variables
NUTRTC	rtcPcf8563

---

Function Documentation

int PcfRtcInit

(

void

)

Initialize the interface to an Intersil PCF8563 hardware clock.

Returns:

0 on success or -1 in case of an error.

Definition at line 258 of file pcf8563.c.

References PcfRtcGetStatus(), and TwInit().

Here is the call graph for this function:

int PcfRtcGetClock

(

struct _tm *

tm

)

Get date and time from an PCF8563 hardware clock.

Parameters:

tm	Points to a structure that receives the date and time information.

Returns:

0 on success or -1 in case of an error.

Definition at line 119 of file pcf8563.c.

References BCD2BIN, PcfRtcReadRegs(), _tm::tm_hour, _tm::tm_mday, _tm::tm_min, _tm::tm_mon, _tm::tm_sec, _tm::tm_wday, and _tm::tm_year.

Here is the call graph for this function:

int PcfRtcSetClock

(

CONST struct _tm *

tm

)

Set an PCF8563 hardware clock.

New time will be taken over at the beginning of the next second.

Parameters:

tm	Points to a structure which contains the date and time information.

Returns:

0 on success or -1 in case of an error.

Definition at line 149 of file pcf8563.c.

References BIN2BCD, memset(), and PcfRtcWrite().

Here is the call graph for this function:

int PcfRtcGetAlarm	(	int	idx,
		struct _tm *	tm,
		int *	aflgs
	)

Get alarm date and time of an PCF8563 hardware clock.

Not implemented.

Parameters:

idx	Zero based index. Two alarms are supported.
tm	Points to a structure that receives the date and time information.
aflgs	Points to an unsigned long that receives the enable flags.

Returns:

0 on success or -1 in case of an error.

Definition at line 186 of file pcf8563.c.

int PcfRtcSetAlarm	(	int	idx,
		CONST struct _tm *	tm,
		int	aflgs
	)

Set alarm of an PCF8563 hardware clock.

Not implemented.

Parameters:

idx	Zero based index. Two alarms are supported.
tm	Points to a structure which contains the date and time information. May be NULL to clear the alarm.
aflgs	Each bit enables a specific comparision. Bit 0: Seconds Bit 1: Minutes Bit 2: Hours Bit 3: Day of month Bit 4: Month Bit 7: Day of week (Sunday is zero)

Returns:

0 on success or -1 in case of an error.

Definition at line 209 of file pcf8563.c.

int PcfRtcGetStatus

(

uint32_t *

sflgs

)

Query RTC status flags.

Parameters:

sflgs

Points to an unsigned long that receives the status flags. Bit 0: Power fail. Bit 5: Alarm 0 occured (not implemented). Bit 6: Alarm 1 occured (not implemented).

Returns:

0 on success or -1 in case of an error.

Definition at line 224 of file pcf8563.c.

References PcfRtcReadRegs(), and RTC_STATUS_PF.

Referenced by PcfRtcInit().

Here is the call graph for this function:

int PcfRtcClearStatus

(

uint32_t

sflgs

)

Clear RTC status flags.

Parameters:

sflgs

Status flags to clear.

Returns:

Always 0.

Definition at line 245 of file pcf8563.c.

int PcfRtcReadRegs	(	uint8_t	reg,
		uint8_t *	buff,
		size_t	cnt
	)

Read RTC registers.

Parameters:

reg	The first register to read.
buff	Pointer to a buffer that receives the register contents.
cnt	The number of registers to read.

Returns:

0 on success or -1 in case of an error.

Definition at line 83 of file pcf8563.c.

References I2C_SLA_RTC, NUT_WAIT_INFINITE, and TwMasterTransact().

Referenced by PcfRtcGetClock(), and PcfRtcGetStatus().

Here is the call graph for this function:

int PcfRtcWrite	(	int	nv,
		CONST uint8_t *	buff,
		size_t	cnt
	)

Write to RTC registers.

Parameters:

nv	Must be set to 1 when writing to non-volatile registers. In this case the routine will poll for write cycle completion before returning to the caller. Set to zero if writing to volatile registers.
buff	This buffer must contain all bytes to be transfered to the RTC chip, including the register address.
cnt	Number of valid bytes in the buffer.

Returns:

0 on success or -1 in case of an error.

Definition at line 106 of file pcf8563.c.

References I2C_SLA_RTC, NUT_WAIT_INFINITE, and TwMasterTransact().

Referenced by PcfRtcSetClock().

Here is the call graph for this function:

---

Variable Documentation

NUTRTC rtcPcf8563

Definition at line 269 of file pcf8563.c.
