_AT45D_FLASH Struct Reference

Internal information structure. More...

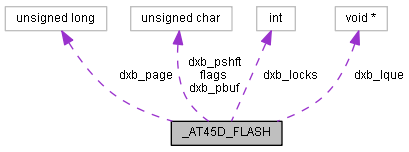

Collaboration diagram for _AT45D_FLASH:

Data Fields
sf_unit_t	dxb_page [FLASH_BUFFERS_AT45D]
	Page number.
uint_fast8_t	flags [FLASH_BUFFERS_AT45D]
	Attribute flags.
int	dxb_locks [FLASH_BUFFERS_AT45D]
	Lock count.
HANDLE	dxb_lque
	Unlock event queue.
uint_fast8_t	dxb_pshft
	Page address shift value.
uint8_t *	dxb_pbuf [FLASH_BUFFERS_AT45D]
	The page buffers.

---

Detailed Description

Internal information structure.

This structure is mainly used to keep track of the serial flash's page buffers.

Definition at line 75 of file spi_flash_at45d.c.

---

Field Documentation

sf_unit_t _AT45D_FLASH::dxb_page[FLASH_BUFFERS_AT45D]

Page number.

Contains the number of the pages currently loaded.

Definition at line 80 of file spi_flash_at45d.c.

uint_fast8_t _AT45D_FLASH::flags[FLASH_BUFFERS_AT45D]

Attribute flags.

Contains FLASH_BUFFER_DIRTY, if the buffer has been modified and not yet written back to flash memory.

Definition at line 87 of file spi_flash_at45d.c.

int _AT45D_FLASH::dxb_locks[FLASH_BUFFERS_AT45D]

Lock count.

A buffer must not be written back to flash memory when this counter is not equal to zero.

Definition at line 94 of file spi_flash_at45d.c.

HANDLE _AT45D_FLASH::dxb_lque

Unlock event queue.

Queued threads waiting for an unlocked buffer.

Definition at line 100 of file spi_flash_at45d.c.

uint_fast8_t _AT45D_FLASH::dxb_pshft

Page address shift value.

Number of bytes to shift the page address for the Dataflash command parameter.

Definition at line 107 of file spi_flash_at45d.c.

uint8_t* _AT45D_FLASH::dxb_pbuf[FLASH_BUFFERS_AT45D]

The page buffers.

Definition at line 110 of file spi_flash_at45d.c.

---

The documentation for this struct was generated from the following file:

• dev/spi_flash_at45d.c
