webradio/xmlserv.c File Reference

---

Detailed Description

XML server interface.

 *
 * $Log$
 *
 *

Definition in file xmlserv.c.

Go to the source code of this file.

Functions
static int	StartReportServiceThread (void)
void	XmlRefresh (void)
static int	XmlProcessCommands (FILE *stream)
static int	XmlProcessReports (FILE *stream)
void	XmlCmdService (void *arg)
	XML command service thread.
void	XmlRepoService (void *arg)
	XML report thread.
int	XmlServerStart (void)
	XML Server Start.
Variables
static int	xmld_tc
static HANDLE	xml_infoq

---

Function Documentation

static int StartReportServiceThread

(

void

)

[static]

Definition at line 302 of file xmlserv.c.

References XMLD_SERVICE_STACK, xmld_tc, and XmlRepoService().

Referenced by XmlRepoService(), and XmlServerStart().

Here is the call graph for this function:

void XmlRefresh

(

void

)

Definition at line 81 of file xmlserv.c.

Referenced by UserIfShowStatus(), UserIfThread(), and XmlProcessCommands().

static int XmlProcessCommands

(

FILE *

stream

)

[static]

Definition at line 89 of file xmlserv.c.

References LOG_ERROR, LOG_XMLCD, LogMsg(), RECEIVERINFO::ri_decoder, webradio, WEBRADIO::wr_cfgupd, WEBRADIO::wr_gain, WEBRADIO::wr_rip, and XmlRefresh().

Referenced by XmlCmdService().

Here is the call graph for this function:

static int XmlProcessReports

(

FILE *

stream

)

[static]

Definition at line 148 of file xmlserv.c.

References UserIfGetDisplayText(), webradio, and WEBRADIO::wr_gain.

Referenced by XmlRepoService().

Here is the call graph for this function:

XmlCmdService

(

void *

arg

)

XML command service thread.

This thread processes XML command request.

Definition at line 167 of file xmlserv.c.

References LOG_ERROR, LOG_HTTPD, LOG_XMLCD, LogMsg(), TcpStreamAccept(), XMLD_CMD_TCP_PORT, XMLD_MAX_SEGSIZE, XMLD_TCP_BUFSIZE, XMLD_TCP_TIMEOUT, and XmlProcessCommands().

Referenced by XmlServerStart().

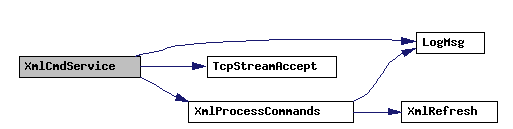

Here is the call graph for this function:

XmlRepoService

(

void *

arg

)

XML report thread.

This thread sends XML reports to a connected client.

Definition at line 223 of file xmlserv.c.

References LOG_WARN, LOG_XMLRD, LogMsg(), StartReportServiceThread(), TcpStreamAccept(), xml_infoq, XMLD_MAX_SEGSIZE, XMLD_MIN_THREADS, XMLD_REPO_TCP_PORT, xmld_tc, XMLD_TCP_BUFSIZE, XMLD_TCP_TIMEOUT, and XmlProcessReports().

Referenced by StartReportServiceThread().

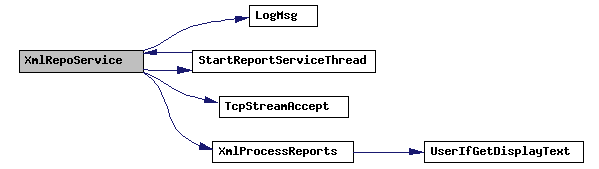

Here is the call graph for this function:

int XmlServerStart

(

void

)

XML Server Start.

Starts a hard coded number of reporter threads and one command thread.

Returns:

0 on success, -1 otherwise.

Definition at line 325 of file xmlserv.c.

Referenced by main().

---

Variable Documentation

int xmld_tc [static]

Definition at line 74 of file xmlserv.c.

Referenced by StartReportServiceThread(), XmlRepoService(), and XmlServerStart().

HANDLE xml_infoq [static]

Definition at line 77 of file xmlserv.c.

Referenced by XmlRefresh(), and XmlRepoService().

---
