PPP Driver. More...

Collaboration diagram for PPP:

Data Structures
struct	_PPPDCB
	PPP interface structure. More...
Defines
#define	PPP_PFC 0x01
#define	PPP_ACFC 0x02
#define	LCP_DEFOPT_ASYNCMAP 0x000A0000UL
#define	LCP_OPEN 1
#define	LCP_CLOSE 2
#define	LCP_LOWERUP 3
#define	LCP_LOWERDOWN 4
Typedefs
typedef struct _PPPDCB	PPPDCB
	PPP interface type.
Functions
void	NutPppInput (NUTDEVICE dev, NETBUF nb)
	Handle incoming PPP frames.
int	NutPppOutput (NUTDEVICE dev, uint16_t type, uint8_t ha, NETBUF *nb)
	Send PPP frame.
void	NutPppSm (void *arg)
	PPP state machine timeout thread.
int	NutPppInitStateMachine (NUTDEVICE *dev)
	Initialize the PPP state machine.
void	LcpOpen (NUTDEVICE *dev)
	Trigger LCP open event.
void	LcpClose (NUTDEVICE *dev)
	Trigger LCP close event.
void	LcpLowerUp (NUTDEVICE *dev)
	Trigger LCP lower up event.
void	LcpLowerDown (NUTDEVICE *dev)
	Trigger LCP lower down event.
void	IpcpOpen (NUTDEVICE *dev)
	Trigger IPCP open event.
void	IpcpClose (NUTDEVICE *dev)
	Trigger IPCP close event.
void	IpcpLowerUp (NUTDEVICE *dev)
void	IpcpLowerDown (NUTDEVICE *dev)
Variables
NUTDEVICE	devPpp
	Device information structure.
uint32_t	new_magic = 0x12345678
IFNET	ifn_ppp
	Network interface information structure.
NUTDEVICE	devPpp
	Device information structure.

Detailed Description

PPP Driver.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY CALL DIRECT CELLULAR SOLUTIONS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL CALL DIRECT CELLULAR SOLUTIONS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

For additional information see http://www.calldirect.com.au/

Copyright (C) 2001-2004 by egnite Software GmbH. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. 2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. 3. Neither the name of the copyright holders nor the names of contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY EGNITE SOFTWARE GMBH AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL EGNITE SOFTWARE GMBH OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

For additional information see http://www.ethernut.de/

Define Documentation

#define PPP_PFC 0x01

Definition at line 118 of file ppp.h.

#define PPP_ACFC 0x02

Definition at line 119 of file ppp.h.

#define LCP_DEFOPT_ASYNCMAP 0x000A0000UL

Definition at line 121 of file ppp.h.

Referenced by LcpTxConfReq().

#define LCP_OPEN 1

Definition at line 259 of file ppp.h.

#define LCP_CLOSE 2

Definition at line 260 of file ppp.h.

#define LCP_LOWERUP 3

Definition at line 261 of file ppp.h.

Referenced by AhdlcRx().

#define LCP_LOWERDOWN 4

Definition at line 262 of file ppp.h.

Referenced by AhdlcRx().

Typedef Documentation

typedef struct _PPPDCB PPPDCB

PPP interface type.

Definition at line 126 of file ppp.h.

Function Documentation

void NutPppInput	(	NUTDEVICE *	dev,
		NETBUF *	nb
	)

Handle incoming PPP frames.

Splits the PPP frame into the data link and the network part. Then the frame is routed to the proper handler, based on the type field in the header.

Note:: This routine is called by the device driver on incoming PPP frames. Applications typically do not call this function.

Parameters:

dev	Identifies the device that received the frame.
nb	Pointer to a network buffer structure containing the PPP frame.

Definition at line 140 of file pppin.c.

References __ppp_trf, __ppp_trs, ppp_header::address, AHDLC_ALLSTATIONS, _NUTDEVICE::dev_dcb, fputs(), LcpTxProtRej(), _NETBUF::nb_dl, _NETBUF::nb_nw, ntohs, NutDumpPpp(), NutIpcpInput(), NutIpInput(), NutLcpInput(), NutNetBufFree(), NutPapInput(), NutSleep(), PAPCS_OPEN, PPP_CHAP, PPP_IP, PPP_IPCP, PPP_LCP, PPP_LQR, PPP_PAP, PPPS_OPENED, ppp_header::prot_type, _NBDATA::sz, and _NBDATA::vp.

Here is the call graph for this function:

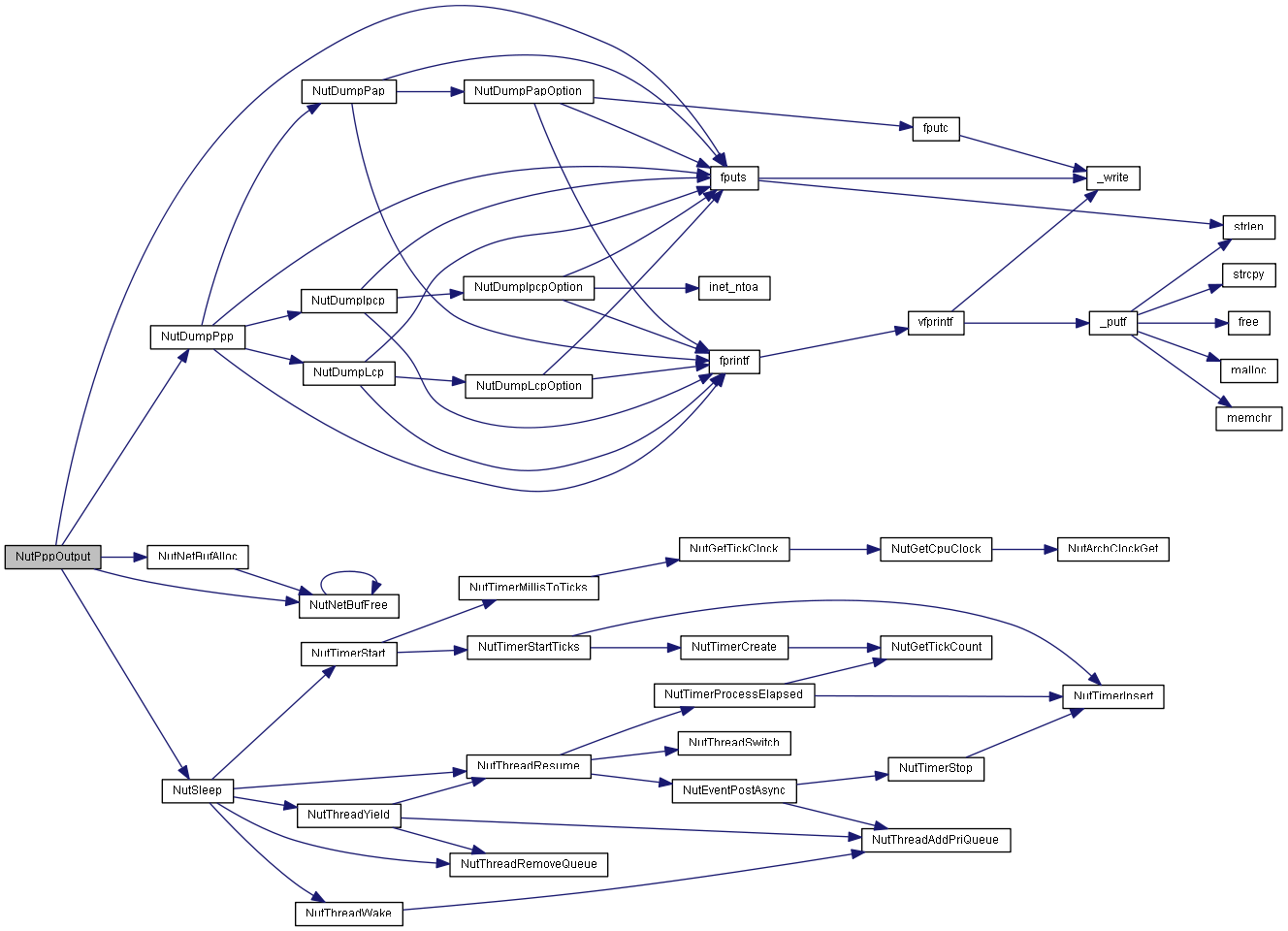

int NutPppOutput	(	NUTDEVICE *	dev,
		uint16_t	type,
		uint8_t *	ha,
		NETBUF *	nb
	)

Send PPP frame.

Send a PPP frame of a given type using the specified device.

Parameters:

dev	Identifies the network device to use.
type	Type of this frame.
ha	Hardware address of the destination, ignored with PPP.
nb	Network buffer structure containing the packet to be sent. The structure must have been allocated by a previous call NutNetBufAlloc() and will be freed if this function returns with an error.

Returns:: 0 on success, -1 in case of any errors.

Definition at line 142 of file pppout.c.

References __ppp_trf, __ppp_trs, ppp_header::address, AHDLC_ALLSTATIONS, AHDLC_UI, ppp_header::control, _PPPDCB::dcb_fd, _NUTDEVICE::dev_dcb, _NUTDEVICE::dev_icb, fputs(), htons, ifnet::if_send, _NETBUF::nb_dl, NBAF_DATALINK, NutDumpPpp(), NutNetBufAlloc(), NutNetBufFree(), NutSleep(), ppp_header::prot_type, and _NBDATA::vp.

Referenced by NutIpcpOutput(), NutLcpOutput(), and NutPapOutput().

Here is the call graph for this function:

NutPppSm ( void * arg )

PPP state machine timeout thread.

Handles timeouts for LCP and IPCP.

Definition at line 117 of file pppsm.c.

References _PPPDCB::dcb_auth_state, _PPPDCB::dcb_ipcp_state, _PPPDCB::dcb_lcp_state, _PPPDCB::dcb_reqid, _PPPDCB::dcb_retries, _NUTDEVICE::dev_dcb, IpcpTxConfReq(), LcpTxConfReq(), new_magic, NutIpcpOutput(), NutLcpOutput(), NutSleep(), PAPCS_AUTHREQ, PapTxAuthReq(), PPPS_ACKSENT, PPPS_CLOSED, PPPS_CLOSING, PPPS_REQSENT, PPPS_STOPPED, PPPS_STOPPING, and XCP_TERMREQ.

Referenced by NutPppInitStateMachine().

Here is the call graph for this function:

int NutPppInitStateMachine ( NUTDEVICE * dev )

Initialize the PPP state machine.

Start the PPP timer thread, if not already running.

Parameters:

dev	Pointer to the NUTDEVICE structure of the PPP device.

Returns:: 0 on success, -1 otherwise.

Definition at line 203 of file pppsm.c.

References NUT_THREAD_PPPSMSTACK, NUT_THREAD_STACK_ADD, NUT_THREAD_STACK_MULT, NutPppSm(), and NutThreadCreate().

Here is the call graph for this function:

void LcpOpen ( NUTDEVICE * dev )

Trigger LCP open event.

Enable the link to come up. Typically triggered by the upper layer, when it is enabled.

Parameters:

dev	Pointer to the NUTDEVICE structure of the PPP device.

Definition at line 221 of file pppsm.c.

References __ppp_trf, __ppp_trs, _PPPDCB::dcb_lcp_state, _PPPDCB::dcb_reqid, _NUTDEVICE::dev_dcb, fputs(), LcpTxConfReq(), PPPS_CLOSED, PPPS_CLOSING, PPPS_INITIAL, PPPS_REQSENT, PPPS_STARTING, and PPPS_STOPPING.

Referenced by IpcpOpen().

Here is the call graph for this function:

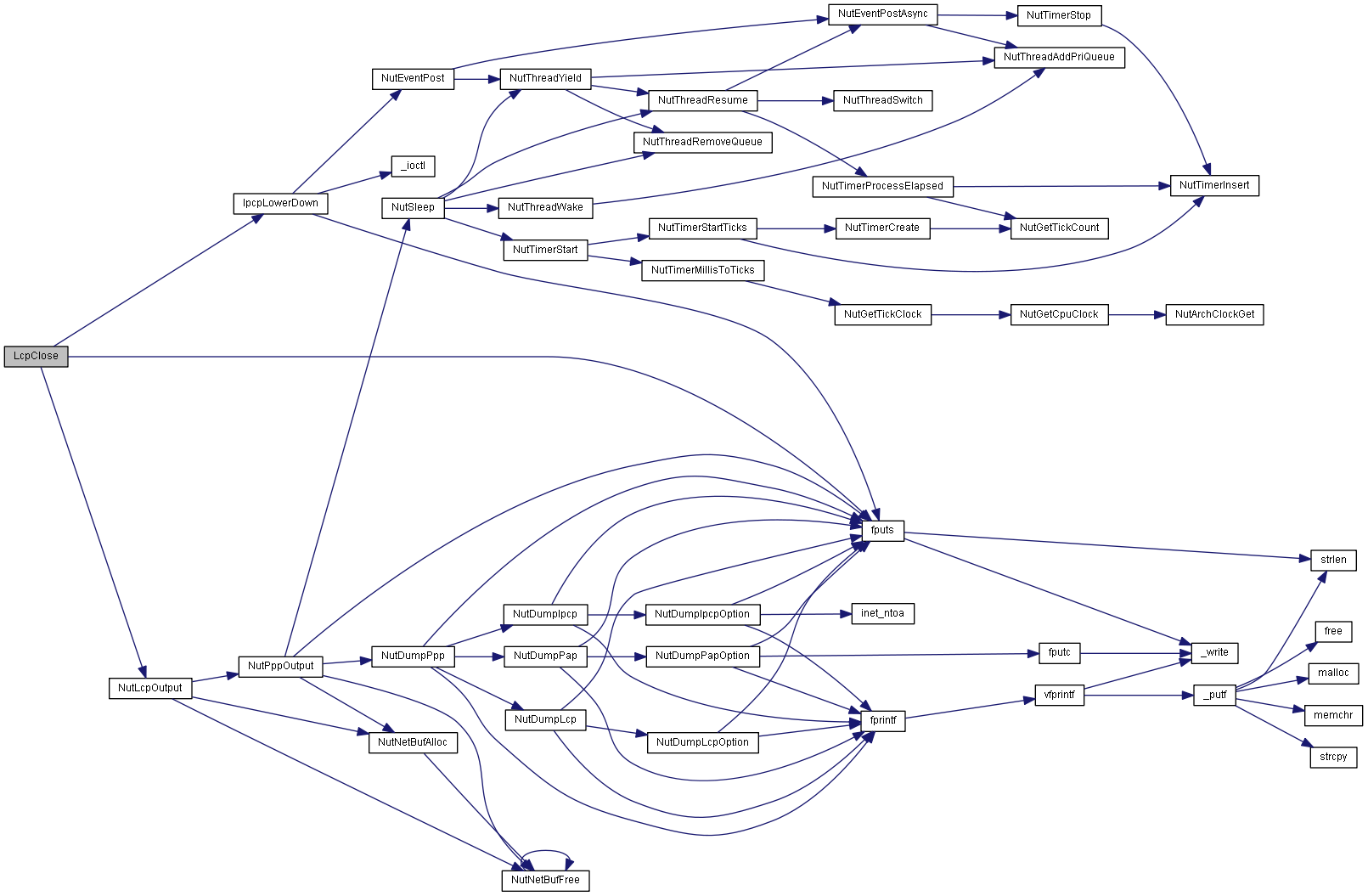

void LcpClose ( NUTDEVICE * dev )

Trigger LCP close event.

Disable the link.

Parameters:

dev	Pointer to the NUTDEVICE structure of the PPP device.

Definition at line 266 of file pppsm.c.

References __ppp_trf, __ppp_trs, _PPPDCB::dcb_lcp_state, _PPPDCB::dcb_reqid, _NUTDEVICE::dev_dcb, fputs(), IpcpLowerDown(), NutLcpOutput(), PPPS_ACKRCVD, PPPS_ACKSENT, PPPS_CLOSED, PPPS_CLOSING, PPPS_INITIAL, PPPS_OPENED, PPPS_REQSENT, PPPS_STARTING, PPPS_STOPPED, PPPS_STOPPING, and XCP_TERMREQ.

Here is the call graph for this function:

void LcpLowerUp ( NUTDEVICE * dev )

Trigger LCP lower up event.

Parameters:

dev	Pointer to the NUTDEVICE structure of the PPP device.

Definition at line 315 of file pppsm.c.

References __ppp_trf, __ppp_trs, _PPPDCB::dcb_lcp_state, _PPPDCB::dcb_reqid, _NUTDEVICE::dev_dcb, fputs(), LcpTxConfReq(), PPPS_CLOSED, PPPS_INITIAL, PPPS_REQSENT, and PPPS_STARTING.

Here is the call graph for this function:

void LcpLowerDown ( NUTDEVICE * dev )

Trigger LCP lower down event.

Parameters:

dev	Pointer to the NUTDEVICE structure of the PPP device.

Definition at line 349 of file pppsm.c.

References __ppp_trf, __ppp_trs, _PPPDCB::dcb_lcp_state, _NUTDEVICE::dev_dcb, fputs(), IpcpLowerDown(), PPPS_ACKRCVD, PPPS_ACKSENT, PPPS_CLOSED, PPPS_CLOSING, PPPS_INITIAL, PPPS_OPENED, PPPS_REQSENT, PPPS_STARTING, PPPS_STOPPED, and PPPS_STOPPING.

Here is the call graph for this function:

void IpcpOpen ( NUTDEVICE * dev )

Trigger IPCP open event.

Link is allowed to come up.

Parameters:

dev	Pointer to the NUTDEVICE structure of the PPP device.

Definition at line 393 of file pppsm.c.

References __ppp_trf, __ppp_trs, _PPPDCB::dcb_ipcp_state, _PPPDCB::dcb_reqid, _NUTDEVICE::dev_dcb, fputs(), IpcpTxConfReq(), LcpOpen(), PPPS_CLOSED, PPPS_CLOSING, PPPS_INITIAL, PPPS_REQSENT, PPPS_STARTING, and PPPS_STOPPING.

Here is the call graph for this function:

void IpcpClose ( NUTDEVICE * dev )

Trigger IPCP close event.

Disable the link.

Cancel timeouts and either initiate close or possibly go directly to the PPPS_CLOSED state.

Parameters:

dev	Pointer to the NUTDEVICE structure of the PPP device.

Definition at line 434 of file pppsm.c.

References __ppp_trf, __ppp_trs, _PPPDCB::dcb_ipcp_state, _PPPDCB::dcb_reqid, _PPPDCB::dcb_state_chg, _NUTDEVICE::dev_dcb, fputs(), NutEventPost(), NutIpcpOutput(), PPPS_ACKRCVD, PPPS_ACKSENT, PPPS_CLOSED, PPPS_CLOSING, PPPS_INITIAL, PPPS_OPENED, PPPS_REQSENT, PPPS_STARTING, PPPS_STOPPED, PPPS_STOPPING, and XCP_TERMREQ.

Here is the call graph for this function:

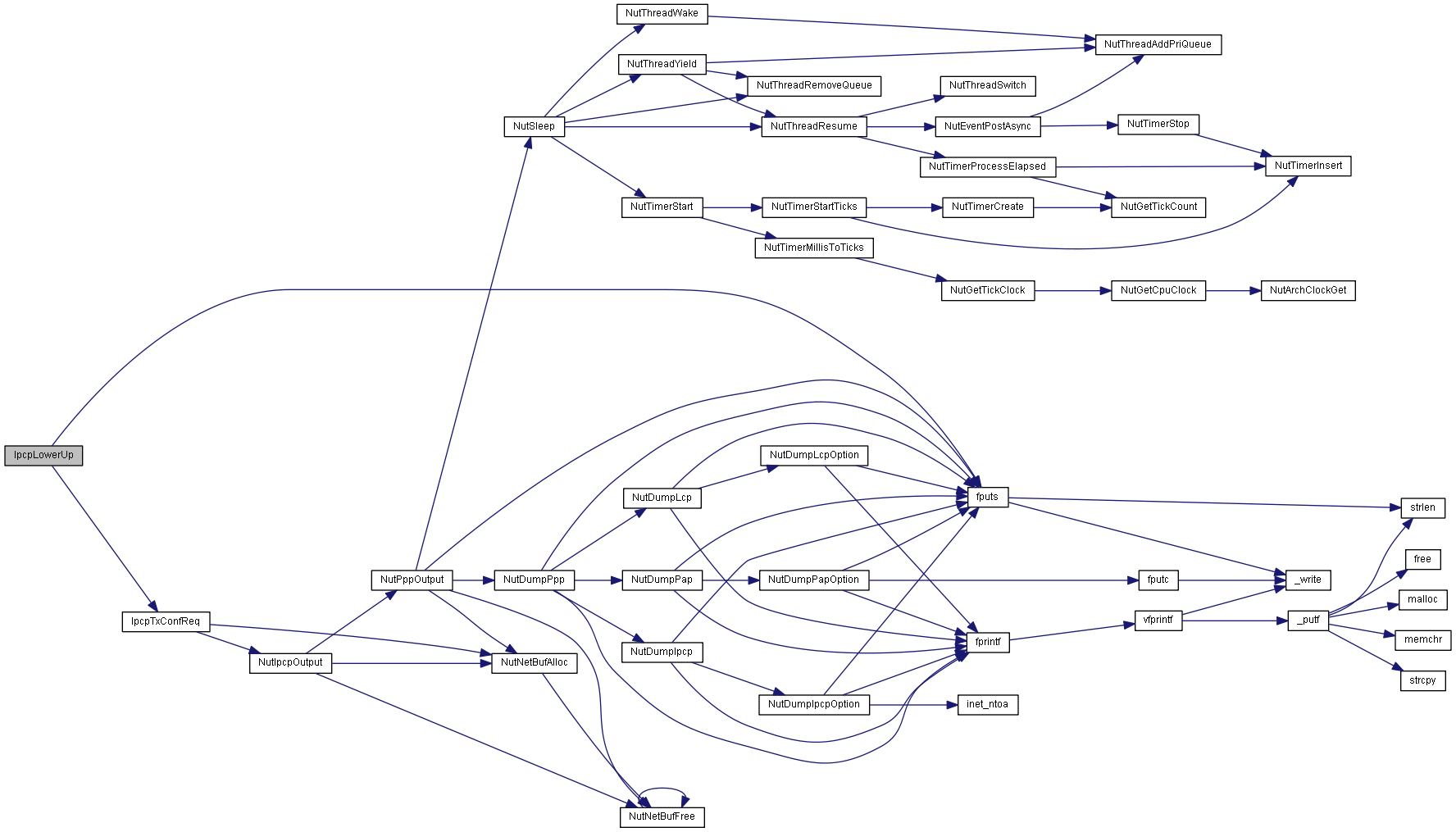

void IpcpLowerUp ( NUTDEVICE * dev )

Definition at line 482 of file pppsm.c.

References __ppp_trf, __ppp_trs, _PPPDCB::dcb_ipcp_state, _PPPDCB::dcb_reqid, _NUTDEVICE::dev_dcb, fputs(), IpcpTxConfReq(), PPPS_CLOSED, PPPS_INITIAL, PPPS_REQSENT, and PPPS_STARTING.

Referenced by PapRxAuthAck().

Here is the call graph for this function:

void IpcpLowerDown ( NUTDEVICE * dev )

Definition at line 511 of file pppsm.c.

References __ppp_trf, __ppp_trs, _ioctl(), _PPPDCB::dcb_fd, _PPPDCB::dcb_ipcp_state, _PPPDCB::dcb_state_chg, _NUTDEVICE::dev_dcb, fputs(), HDLC_SETIFNET, NutEventPost(), PPPS_ACKRCVD, PPPS_ACKSENT, PPPS_CLOSED, PPPS_CLOSING, PPPS_INITIAL, PPPS_OPENED, PPPS_REQSENT, PPPS_STARTING, PPPS_STOPPED, and PPPS_STOPPING.

Referenced by IpcpRxConfAck(), IpcpRxConfReq(), IpcpRxProtRej(), IpcpRxTermAck(), IpcpRxTermReq(), LcpClose(), LcpLowerDown(), LcpRxProtRej(), and PapRxAuthNak().

Here is the call graph for this function:

Variable Documentation

NUTDEVICE devPpp

Device information structure.

This is a virtual device driver has no underlying hardware and must not be registered. It will be initialized when the application calls NutNetIfConfig().

Examples:: pppc/pppc.c.

Definition at line 350 of file ppp.c.

uint32_t new_magic = 0x12345678

Definition at line 108 of file pppsm.c.

Referenced by NutPppSm().

IFNET ifn_ppp

Initial value:

 {
    IFT_PPP,
    0,
    {0, 0, 0, 0, 0, 0}
    ,
    0,
    0,
    0,
    PPP_MRU,
    0,
    0,
    0,
    NutPppInput,
    0,
    NutPppOutput
}

Network interface information structure.

Definition at line 326 of file ppp.c.

NUTDEVICE devPpp

Initial value:

 {
    0,
    {'p', 'p', 'p', 0, 0, 0, 0, 0, 0}
    ,
    IFTYP_NET,
    0,
    0,
    &ifn_ppp,
    &dcb_ppp,
    NutPppInit,
    NutPppIOCtl,
    NutPppRead,
    NutPppWrite,

    NutPppWrite_P,

    NutPppOpen,
    NutPppClose,
    0
}

Device information structure.

This is a virtual device driver has no underlying hardware and must not be registered. It will be initialized when the application calls NutNetIfConfig().

Definition at line 350 of file ppp.c.
