lanc111.c File Reference
#include <cfg/os.h>
#include <cfg/arch/avr.h>
#include <sys/atom.h>
#include <sys/heap.h>
#include <sys/thread.h>
#include <sys/event.h>
#include <sys/timer.h>
#include <sys/confnet.h>
#include <netinet/if_ether.h>
#include <net/ether.h>
#include <net/if_var.h>
#include <dev/irqreg.h>
#include <dev/lanc111.h>
#include <stdlib.h>
#include <string.h>
#include <stdio.h>

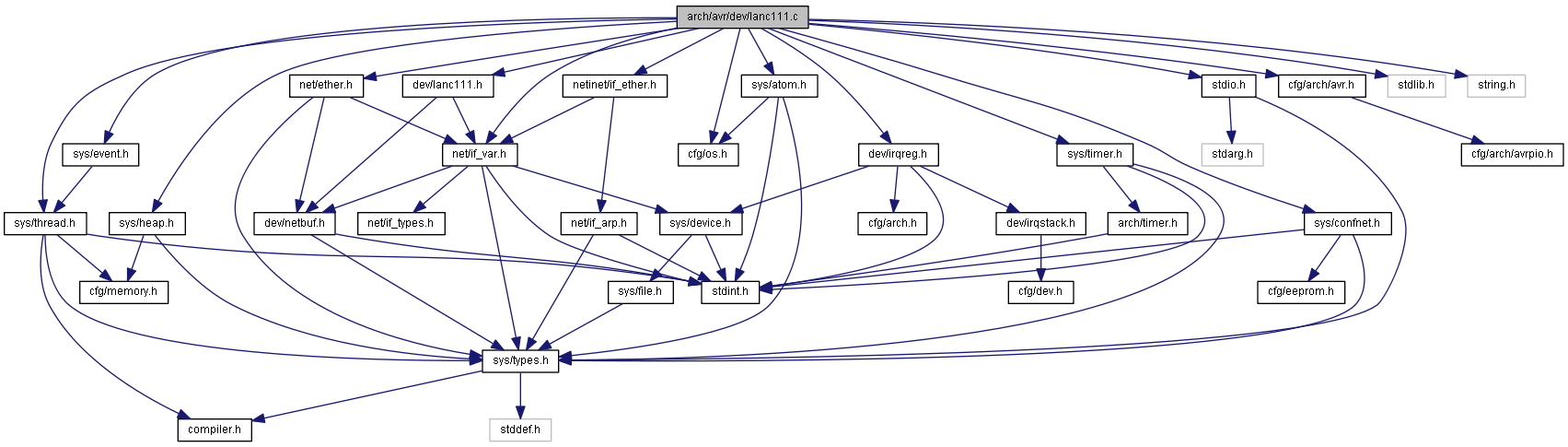

Include dependency graph for lanc111.c:

Go to the source code of this file.

Data Structures

struct  _NICINFO
 Network interface controller information structure. More...

Defines

#define NUT_THREAD_LANCRXSTACK   256
#define LANC111_BASE_ADDR   0xC000
#define LANC111_SIGNAL_IRQ   INT5
#define LANC111_SIGNAL   sig_INTERRUPT0
#define LANC111_SIGNAL_MODE()   sbi(EICRA, ISC00); sbi(EICRA, ISC01)
#define NIC_BSR   (LANC111_BASE_ADDR + 0x0E)
 Bank select register.
#define NIC_TCR   (LANC111_BASE_ADDR + 0x00)
 Bank 0 - Transmit control register.
#define TCR_SWFDUP   0x8000
#define TCR_EPH_LOOP   0x2000
#define TCR_STP_SQET   0x1000
#define TCR_FDUPLX   0x0800
#define TCR_MON_CSN   0x0400
#define TCR_NOCRC   0x0100
#define TCR_PAD_EN   0x0080
#define TCR_FORCOL   0x0004
#define TCR_LOOP   0x0002
#define TCR_TXENA   0x0001
#define NIC_EPHSR   (LANC111_BASE_ADDR + 0x02)
 Bank 0 - EPH status register.
#define NIC_RCR   (LANC111_BASE_ADDR + 0x04)
 Bank 0 - Receive control register.
#define RCR_SOFT_RST   0x8000
#define RCR_FILT_CAR   0x4000
#define RCR_ABORT_ENB   0x2000
#define RCR_STRIP_CRC   0x0200
#define RCR_RXEN   0x0100
#define RCR_ALMUL   0x0004
#define RCR_PRMS   0x0002
#define RCR_RX_ABORT   0x0001
#define NIC_ECR   (LANC111_BASE_ADDR + 0x06)
 Bank 0 - Counter register.
#define NIC_MIR   (LANC111_BASE_ADDR + 0x08)
 Bank 0 - Memory information register.
#define NIC_RPCR   (LANC111_BASE_ADDR + 0x0A)
 Bank 0 - Receive / PHY control register.
#define RPCR_SPEED   0x2000
#define RPCR_DPLX   0x1000
#define RPCR_ANEG   0x0800
#define RPCR_LEDA_PAT   0x0000
#define RPCR_LEDB_PAT   0x0010
#define NIC_CR   (LANC111_BASE_ADDR + 0x00)
 Bank 1 - Configuration register.
#define CR_EPH_EN   0x8000
#define NIC_BAR   (LANC111_BASE_ADDR + 0x02)
 Bank 1 - Base address register.
#define NIC_IAR   (LANC111_BASE_ADDR + 0x04)
 Bank 1 - Individual address register.
#define NIC_GPR   (LANC111_BASE_ADDR + 0x0A)
 Bank 1 - General purpose register.
#define NIC_CTR   (LANC111_BASE_ADDR + 0x0C)
 Bank 1 - Control register.
#define CTR_RCV_BAD   0x4000
#define CTR_AUTO_RELEASE   0x0800
#define NIC_MMUCR   (LANC111_BASE_ADDR + 0x00)
 Bank 2 - MMU command register.
#define MMUCR_BUSY   0x0001
#define MMU_NOP   0
#define MMU_ALO   (1<<5)
#define MMU_RST   (2<<5)
#define MMU_REM   (3<<5)
#define MMU_TOP   (4<<5)
#define MMU_PKT   (5<<5)
#define MMU_ENQ   (6<<5)
#define MMU_RTX   (7<<5)
#define NIC_PNR   (LANC111_BASE_ADDR + 0x02)
 Bank 2 - Packet number register.
#define NIC_ARR   (LANC111_BASE_ADDR + 0x03)
 Bank 2 - Allocation result register.
#define ARR_FAILED   0x80
#define NIC_FIFO   (LANC111_BASE_ADDR + 0x04)
 Bank 2 - FIFO ports register.
#define NIC_PTR   (LANC111_BASE_ADDR + 0x06)
 Bank 2 - Pointer register.
#define PTR_RCV   0x8000
#define PTR_AUTO_INCR   0x4000
#define PTR_READ   0x2000
#define PTR_ETEN   0x1000
#define PTR_NOT_EMPTY   0x0800
#define NIC_DATA   (LANC111_BASE_ADDR + 0x08)
 Bank 2 - Data register.
#define NIC_IST   (LANC111_BASE_ADDR + 0x0C)
 Bank 2 - Interrupt status register.
#define NIC_ACK   (LANC111_BASE_ADDR + 0x0C)
 Bank 2 - Interrupt acknowledge register.
#define NIC_MSK   (LANC111_BASE_ADDR + 0x0D)
 Bank 2 - Interrupt mask register.
#define INT_MD   0x80
 PHY state change interrupt bit mask.
#define INT_ERCV   0x40
 Early receive interrupt bit mask.
#define INT_EPH   0x20
 Ethernet protocol interrupt bit mask.
#define INT_RX_OVRN   0x10
 Receive overrun interrupt bit mask.
#define INT_ALLOC   0x08
 Transmit allocation interrupt bit mask.
#define INT_TX_EMPTY   0x04
 Transmitter empty interrupt bit mask.
#define INT_TX   0x02
 Transmit complete interrupt bit mask.
#define INT_RCV   0x01
 Receive interrupt bit mask.
#define NIC_MT   (LANC111_BASE_ADDR + 0x00)
 Bank 3 - Multicast table register.
#define NIC_MGMT   (LANC111_BASE_ADDR + 0x08)
 Bank 3 - Management interface register.
#define MGMT_MDOE   0x08
#define MGMT_MCLK   0x04
#define MGMT_MDI   0x02
#define MGMT_MDO   0x01
#define NIC_REV   (LANC111_BASE_ADDR + 0x0A)
 Bank 3 - Revision register.
#define NIC_ERCV   (LANC111_BASE_ADDR + 0x0C)
 Bank 3 - Early RCV register.
#define NIC_PHYCR   0
 PHY control register.
#define PHYCR_RST   0x8000
#define PHYCR_LPBK   0x4000
#define PHYCR_SPEED   0x2000
#define PHYCR_ANEG_EN   0x1000
#define PHYCR_PDN   0x0800
#define PHYCR_MII_DIS   0x0400
#define PHYCR_ANEG_RST   0x0200
#define PHYCR_DPLX   0x0100
#define PHYCR_COLST   0x0080
#define NIC_PHYSR   1
 PHY status register.
#define PHYSR_CAP_T4   0x8000
#define PHYSR_CAP_TXF   0x4000
#define PHYSR_CAP_TXH   0x2000
#define PHYSR_CAP_TF   0x1000
#define PHYSR_CAP_TH   0x0800
#define PHYSR_CAP_SUPR   0x0040
#define PHYSR_ANEG_ACK   0x0020
#define PHYSR_REM_FLT   0x0010
#define PHYSR_CAP_ANEG   0x0008
#define PHYSR_LINK   0x0004
#define PHYSR_JAB   0x0002
#define PHYSR_EXREG   0x0001
#define NIC_PHYID1   2
 PHY identifier register 1.
#define NIC_PHYID2   3
 PHY identifier register 1.
#define NIC_PHYANAD   4
 PHY auto-negotiation advertisement register.
#define PHYANAD_NP   0x8000
#define PHYANAD_ACK   0x4000
#define PHYANAD_RF   0x2000
#define PHYANAD_T4   0x0200
#define PHYANAD_TX_FDX   0x0100
#define PHYANAD_TX_HDX   0x0080
#define PHYANAD_10FDX   0x0040
#define PHYANAD_10_HDX   0x0020
#define PHYANAD_CSMA   0x0001
#define NIC_PHYANRC   5
 PHY auto-negotiation remote end capability register.
#define NIC_PHYCFR1   16
 PHY configuration register 1.
#define NIC_PHYCFR2   17
 PHY configuration register 2.
#define NIC_PHYSOR   18
 PHY status output register.
#define PHYSOR_INT   0x8000
#define PHYSOR_LNKFAIL   0x4000
#define PHYSOR_LOSSSYNC   0x2000
#define PHYSOR_CWRD   0x1000
#define PHYSOR_SSD   0x0800
#define PHYSOR_ESD   0x0400
#define PHYSOR_RPOL   0x0200
#define PHYSOR_JAB   0x0100
#define PHYSOR_SPDDET   0x0080
#define PHYSOR_DPLXDET   0x0040
#define NIC_PHYMSK   19
 PHY mask register.
#define PHYMSK_MINT   0x8000
#define PHYMSK_MLNKFAIL   0x4000
#define PHYMSK_MLOSSSYN   0x2000
#define PHYMSK_MCWRD   0x1000
#define PHYMSK_MSSD   0x0800
#define PHYMSK_MESD   0x0400
#define PHYMSK_MRPOL   0x0200
#define PHYMSK_MJAB   0x0100
#define PHYMSK_MSPDDT   0x0080
#define PHYMSK_MDPLDT   0x0040
#define MSBV(bit)   (1 << ((bit) - 8))
#define nic_outlb(addr, val)   (*(volatile uint8_t *)(addr) = (val))
#define nic_outhb(addr, val)   (*(volatile uint8_t *)((addr) + 1) = (val))
#define nic_outwx(addr, val)   (*(volatile uint16_t *)(addr) = (val))
#define nic_outw(addr, val)
#define nic_inlb(addr)   (*(volatile uint8_t *)(addr))
#define nic_inhb(addr)   (*(volatile uint8_t *)((addr) + 1))
#define nic_inw(addr)   (*(volatile uint16_t *)(addr))
#define nic_bs(bank)   nic_outlb(NIC_BSR, bank)

Typedefs

typedef struct _NICINFO NICINFO
 Network interface controller information type.

Functions

void NicRxLanc (void *arg)
 NIC receiver thread.
int LancOutput (NUTDEVICE *dev, NETBUF *nb)
 Send Ethernet packet.
int LancInit (NUTDEVICE *dev)
 Initialize Ethernet hardware.

Variables

NUTDEVICE devSmsc111
 Device information structure.

Define Documentation

#define NUT_THREAD_LANCRXSTACK   256

Definition at line 142 of file lanc111.c.

Referenced by LancInit().

#define LANC111_BASE_ADDR   0xC000

Definition at line 153 of file lanc111.c.

#define LANC111_SIGNAL_IRQ   INT5

Definition at line 157 of file lanc111.c.

Referenced by LancInit(), and NicRxLanc().

#define LANC111_SIGNAL   sig_INTERRUPT0

Definition at line 186 of file lanc111.c.

Referenced by LancInit().

#define LANC111_SIGNAL_MODE ( )    sbi(EICRA, ISC00); sbi(EICRA, ISC01)

Definition at line 187 of file lanc111.c.

Referenced by NicRxLanc().
