RTC and EEPROM routines for the Intersil X12xx clock chips. More...

#include <cfg/os.h>
#include <cfg/eeprom.h>
#include <dev/twif.h>
#include <sys/event.h>
#include <sys/timer.h>
#include <time.h>
#include <stdlib.h>
#include <string.h>
#include <memdebug.h>
#include <dev/x12rtc.h>

Include dependency graph for x12rtc.c:

Go to the source code of this file.

Defines
#define	NUT_DEPRECATED
#define	I2C_SLA_RTC 0x6F
#define	I2C_SLA_EEPROM 0x57
#define	EEPROM_PAGE_SIZE 64
Functions
int	X12RtcReadRegs (uint8_t reg, uint8_t *buff, size_t cnt)
	Read RTC registers.
int	X12RtcWrite (int nv, CONST uint8_t *buff, size_t cnt)
	Write to RTC registers.
int	X12RtcGetClock (struct _tm *tm)
	Get date and time from an X12xx hardware clock.
int	X12RtcSetClock (CONST struct _tm *tm)
	Set an X12xx hardware clock.
int	X12RtcGetAlarm (int idx, struct _tm tm, int aflgs)
	Get alarm date and time of an X12xx hardware clock.
int	X12RtcSetAlarm (int idx, CONST struct _tm *tm, int aflgs)
	Set alarm of an X12xx hardware clock.
int	X12RtcGetStatus (uint32_t *sflgs)
	Query RTC status flags.
int	X12RtcClearStatus (uint32_t sflgs)
	Clear RTC status flags.
int	X12EepromRead (unsigned int addr, void *buff, size_t len)
	Read contents from non-volatile EEPROM.
int	X12EepromWrite (unsigned int addr, CONST void *buff, size_t len)
	Store buffer contents in non-volatile EEPROM.
int	X12Init (void)
	Initialize the interface to an Intersil X12xx hardware clock.
Variables
NUTRTC	rtcX12x6

Detailed Description

RTC and EEPROM routines for the Intersil X12xx clock chips.

 *
 * $Log$
 * Revision 1.10  2009/02/13 14:52:05  haraldkipp
 * Include memdebug.h for heap management debugging support.
 *
 * Revision 1.9  2009/01/17 11:26:46  haraldkipp
 * Getting rid of two remaining BSD types in favor of stdint.
 * Replaced 'u_int' by 'unsinged int' and 'uptr_t' by 'uintptr_t'.
 *
 * Revision 1.8  2008/08/11 06:59:42  haraldkipp
 * BSD types replaced by stdint types (feature request #1282721).
 *
 * Revision 1.7  2008/07/09 14:25:06  haraldkipp
 * Made EEPROM_PAGE_SIZE configurable. Does it really make sense?
 *
 * Revision 1.6  2007/06/03 08:50:38  haraldkipp
 * Automatic detection of X1226 or X1286.
 * Fixed wrong century determination for X1226.
 * Debugging output added.
 *
 * Revision 1.5  2007/05/02 11:29:25  haraldkipp
 * Failed to store more than one EEPROM page. Removing NutSleep() from
 * X12WaitReady() fixes this. Why?
 *
 * Revision 1.4  2006/10/05 17:21:53  haraldkipp
 * Hardware specific functions marked deprecated.
 * Hardcoded register addresses and values replaced by macros.
 *
 * Revision 1.3  2006/03/02 19:57:34  haraldkipp
 * ICCARM insists on a (void *) typecast for the second parameter of memcpy().
 *
 * Revision 1.2  2006/01/19 18:41:34  haraldkipp
 * Year translation was completely broken. Fixed.
 *
 * Revision 1.1  2005/10/24 10:21:57  haraldkipp
 * Initial check in.
 *
 *
 *

Definition in file x12rtc.c.

Define Documentation

#define NUT_DEPRECATED

Definition at line 80 of file x12rtc.c.

#define I2C_SLA_RTC 0x6F

Definition at line 107 of file x12rtc.c.

Referenced by X12RtcReadRegs(), and X12RtcWrite().

#define I2C_SLA_EEPROM 0x57

Definition at line 111 of file x12rtc.c.

Referenced by X12EepromRead(), and X12EepromWrite().

#define EEPROM_PAGE_SIZE 64

Definition at line 115 of file x12rtc.c.

Referenced by X12EepromWrite().

Function Documentation

int X12RtcReadRegs	(	uint8_t	reg,
		uint8_t *	buff,
		size_t	cnt
	)

Read RTC registers.

Parameters:

reg	The first register to read.
buff	Pointer to a buffer that receives the register contents.
cnt	The number of registers to read.

Returns:: 0 on success or -1 in case of an error.

Definition at line 180 of file x12rtc.c.

References I2C_SLA_RTC, NUT_WAIT_INFINITE, printf, putchar(), and TwMasterTransact().

Referenced by X12Init(), X12RtcGetAlarm(), X12RtcGetClock(), and X12RtcGetStatus().

Here is the call graph for this function:

int X12RtcWrite	(	int	nv,
		CONST uint8_t *	buff,
		size_t	cnt
	)

Write to RTC registers.

Parameters:

nv	Must be set to 1 when writing to non-volatile registers. In this case the routine will poll for write cycle completion before returning to the caller. Set to zero if writing to volatile registers.
buff	This buffer must contain all bytes to be transfered to the RTC chip, including the register address.
cnt	Number of valid bytes in the buffer.

Returns:: 0 on success or -1 in case of an error.

Definition at line 213 of file x12rtc.c.

References I2C_SLA_RTC, NUT_WAIT_INFINITE, printf, putchar(), and TwMasterTransact().

Referenced by X12RtcSetAlarm(), and X12RtcSetClock().

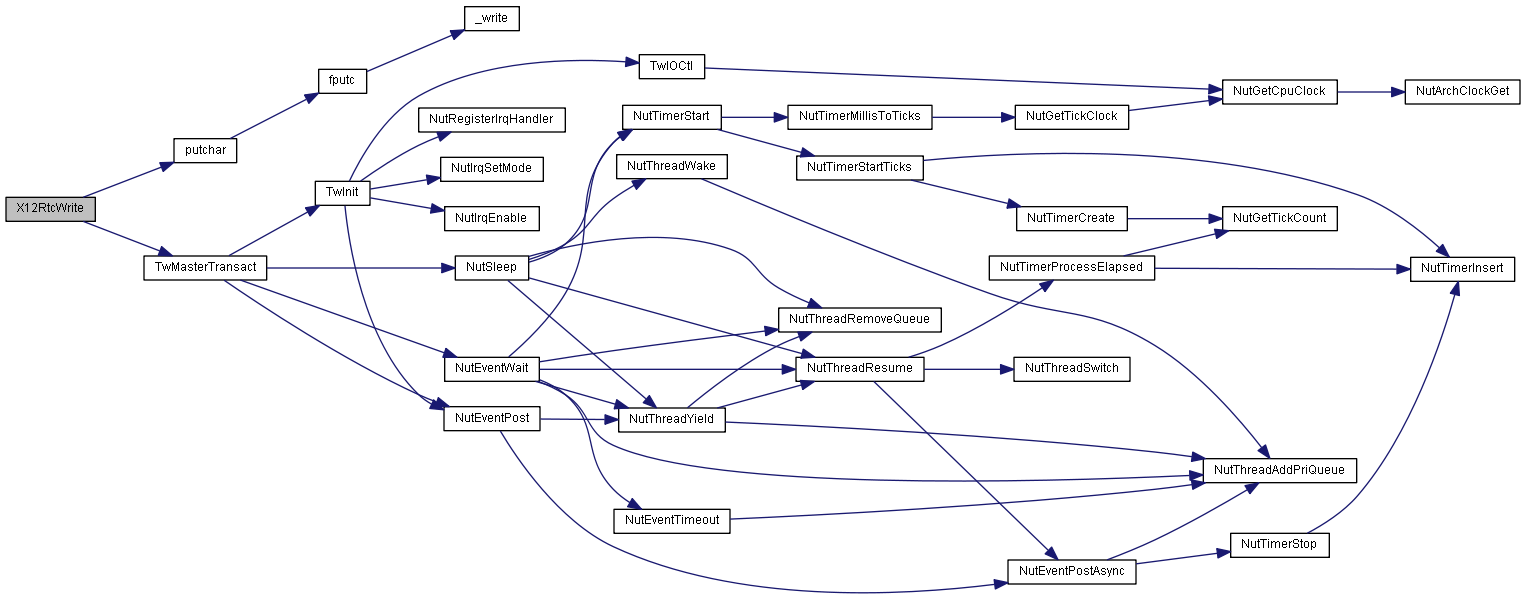

Here is the call graph for this function:

int X12RtcGetClock ( struct _tm * tm )

Get date and time from an X12xx hardware clock.

Deprecated:: New applications must use NutRtcGetTime().

Parameters:

tm	Points to a structure that receives the date and time information.

Returns:: 0 on success or -1 in case of an error.

Definition at line 245 of file x12rtc.c.

References BCD2BIN, _tm::tm_hour, _tm::tm_mday, _tm::tm_min, _tm::tm_mon, _tm::tm_sec, _tm::tm_wday, _tm::tm_year, X12RTC_SC, and X12RtcReadRegs().

Here is the call graph for this function:

int X12RtcSetClock ( CONST struct _tm * tm )

Set an X12xx hardware clock.

Deprecated:: New applications must use NutRtcSetTime().

New time will be taken over at the beginning of the next second.

Parameters:

tm	Points to a structure which contains the date and time information.

Returns:: 0 on success or -1 in case of an error.

Definition at line 282 of file x12rtc.c.

References BIN2BCD, memset(), X12RTC_SC, and X12RtcWrite().

Here is the call graph for this function:

int X12RtcGetAlarm	(	int	idx,
		struct _tm *	tm,
		int *	aflgs
	)

Get alarm date and time of an X12xx hardware clock.

Deprecated:: New applications must use NutRtcGetAlarm().

Parameters:

idx	Zero based index. Two alarms are supported.
tm	Points to a structure that receives the date and time information.
aflgs	Points to an unsigned long that receives the enable flags.

Returns:: 0 on success or -1 in case of an error.

Definition at line 326 of file x12rtc.c.

References BCD2BIN, memset(), RTC_ALARM_HOUR, RTC_ALARM_MDAY, RTC_ALARM_MINUTE, RTC_ALARM_MONTH, RTC_ALARM_SECOND, RTC_ALARM_WDAY, _tm::tm_hour, _tm::tm_mday, _tm::tm_min, _tm::tm_mon, _tm::tm_sec, _tm::tm_wday, X12RTC_DTA_EDT, X12RTC_DWA_EDW, X12RTC_HRA_EHR, X12RTC_MNA_EMN, X12RTC_MOA_EMO, X12RTC_SCA_ESC, and X12RtcReadRegs().

Here is the call graph for this function:

int X12RtcSetAlarm	(	int	idx,
		CONST struct _tm *	tm,
		int	aflgs
	)

Set alarm of an X12xx hardware clock.

Deprecated:: New applications must use NutRtcSetAlarm().

Parameters:

idx	Zero based index. Two alarms are supported.
tm	Points to a structure which contains the date and time information. May be NULL to clear the alarm.
aflgs	Each bit enables a specific comparision. Bit 0: Seconds Bit 1: Minutes Bit 2: Hours Bit 3: Day of month Bit 4: Month Bit 7: Day of week (Sunday is zero)

Returns:: 0 on success or -1 in case of an error.

Definition at line 380 of file x12rtc.c.

References BIN2BCD, memset(), RTC_ALARM_HOUR, RTC_ALARM_MDAY, RTC_ALARM_MINUTE, RTC_ALARM_MONTH, RTC_ALARM_SECOND, RTC_ALARM_WDAY, X12RTC_DTA_EDT, X12RTC_DWA_EDW, X12RTC_HRA_EHR, X12RTC_MNA_EMN, X12RTC_MOA_EMO, X12RTC_SCA_ESC, and X12RtcWrite().

Here is the call graph for this function:

int X12RtcGetStatus ( uint32_t * sflgs )

Query RTC status flags.

Deprecated:: New applications must use NutRtcGetStatus().

Parameters:

sflgs

Points to an unsigned long that receives the status flags.

Bit 0: Power fail.
Bit 5: Alarm 0 occured.
Bit 6: Alarm 1 occured.

Returns:: 0 on success or -1 in case of an error.

Definition at line 421 of file x12rtc.c.

References X12RTC_SR, and X12RtcReadRegs().

Referenced by X12Init().

Here is the call graph for this function:

int X12RtcClearStatus ( uint32_t sflgs )

Clear RTC status flags.

Deprecated:: New applications must use NutRtcClearStatus().

Parameters:

sflgs Status flags to clear.

Returns:: Always 0.

Definition at line 442 of file x12rtc.c.

int X12EepromRead	(	unsigned int	addr,
		void *	buff,
		size_t	len
	)

Read contents from non-volatile EEPROM.

Parameters:

addr	Start location.
buff	Points to a buffer that receives the contents.
len	Number of bytes to read.

Returns:: 0 on success or -1 in case of an error.

Definition at line 469 of file x12rtc.c.

References I2C_SLA_EEPROM, NUT_WAIT_INFINITE, and TwMasterTransact().

Referenced by NutNvMemLoad().

Here is the call graph for this function:

int X12EepromWrite	(	unsigned int	addr,
		CONST void *	buff,
		size_t	len
	)

Store buffer contents in non-volatile EEPROM.

The EEPROM of the X122x has a capacity of 512 bytes, while the X1286 is able to store 32 kBytes.

Parameters:

addr	Storage start location.
buff	Points to a buffer that contains the bytes to store.
len	Number of valid bytes in the buffer.

Returns:: 0 on success or -1 in case of an error.

Definition at line 494 of file x12rtc.c.

References CONST, EEPROM_PAGE_SIZE, free(), I2C_SLA_EEPROM, malloc(), memcpy(), NUT_WAIT_INFINITE, and TwMasterTransact().

Referenced by NutNvMemSave().

Here is the call graph for this function:

int X12Init ( void )

Initialize the interface to an Intersil X12xx hardware clock.

Deprecated:: New applications must use NutRegisterRtc().

Returns:: 0 on success or -1 in case of an error.

Definition at line 552 of file x12rtc.c.

References NutSleep(), printf, TwInit(), X128xRTC_SSEC, X12RtcGetStatus(), and X12RtcReadRegs().

Here is the call graph for this function:

Variable Documentation

NUTRTC rtcX12x6

Initial value:

 {
    X12Init,
    X12RtcGetClock,
    X12RtcSetClock,
    X12RtcGetAlarm,
    X12RtcSetAlarm,
    X12RtcGetStatus,
    X12RtcClearStatus
}

Definition at line 449 of file x12rtc.c.
